Modulators NIR Supplement
AO Modulators

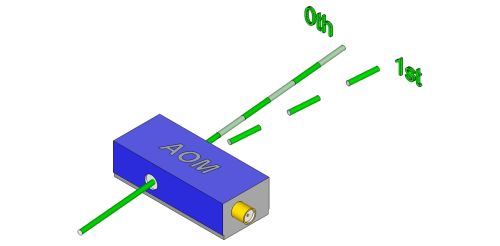

Click Image for basic Modulator equations
Modulators NIR Supplement
| Model | Std A/R | Crystal Material | Active Aperture Height (mm) | Typ' Risetime (ns) at Beam Dia' (mm) | Centre Freq.(MHz) | Suggested Driver | Feature |
| M1205-P80L-H | 633-830nm | PbMo04 | 1 / 2 | 179 / 1 | 80 | ||
| M1205-P80L-H | 830-1064nm | PbMo04 | 1 / 2 | 179 / 1 | 80 | ||
| M1205-P80L-H | 1550nm | PbMo04 | 0.6 / 1 / 2 | 90 / 0.5 | 80 | ||
| M1205-T80L-H | 633-830nm | TeO2 | 1 / 2 | 155 / 1 | 80 | ||
| M1080-T80L-1.5 | 700-900nm, 1um | TeO2 | ‘1.5 | 155 / 1 | 80 | ||
| M1206-P110L-1 | 633-830nm | PbMo04 | 1 | 179 / 1 | 110 | ||
| M1206-P110L-H | 1550nm | PbMo04 | 0.5 / 1 | 90 / 0.5 | 110 | ||
| M1206-T110L-1 | 633-830nm | TeO2 | 1 | 179 / 1 | 110 | ||
| M1206-T110L-1 | 830-1064nm | TeO2 | 1 | 155 / 1 | 110 | ||
| M1250-T150L-0.5 | 633-830nm | TeO2 | 0.5 | 46 / 0.3 | 150 | ||
| M1250-T150L-0.5 | 830-1064nm | TeO2 | 0.5 | 46 / 0.3 | 150 | ||
| M1250-T150L-0.5 | 1500nm | TeO2 | 0.5 | 46 / 0.3 | 150 | ||
| M1250-P200L-0.7 | 633-830nm | PbMo04 | 0.7 | 90 / 0.5 | 200 | ||
| M1250-T200L-0.5 | 633-830nm | TeO2 | 0.5 | 31 / 0.2 | 200 | ||
| M1250-T200L-0.5 | 830-1064nm | TeO2 | 0.5 | 31 / 0.2 | 200 | ||
| M1250-T200L-0.5 | 1550nm | TeO2 | 0.5 | 31 / 0.2 | 200 | ||
| M1250-T260L-0.45 | 633-830nm | TeO2 | 0.45 | 23 / 0.15 | 250/260 | ||
| M1250-T260L-0.45 | 830-1064nm | TeO2 | 0.45 | 23 / 0.15 | 250/260 | ||
| M1250-T260L-0.45 | 1550nm | TeO2 | 0.45 | 23 / 0.15 | 250/260 |
